Proceedings of the
Fourth Aerospace Materials, Processes, and Environmental Technology Conference
Huntsville, AL,;September 18-20, 2000

Highly Effective, Low Toxicity, Low Environmental Impact Total Flooding Fire Suppressants

JON NIMITZ PRESIDENT/CEO	SUZANNE GLASS RESEARCH ASSOCIATE	PATRICK M. DHOOGE DIRECTOR OF BUSINESS DEVELOPMENT
ENVIRONMENTAL TECHNOLOGY AND EDUCATION CENTER ALBUQUERQUE, NEW MEXICO

INTRODUCTION

Halon 1301 (CF₃Br) has been used for decades as the primary fire suppression agent for areas where powder agents cannot be used because of concerns for sensitive equipment. Halon 1301 is an excellent extinguishing agent, effective at about 3% in air and quite non-toxic. It has an effective exposure limit much greater than its extinguishing concentration, so it can be used in normally occupied areas.

The ability of a chemical to destroy stratospheric ozone is its ozone-depletion potential (ODP). ODP is the amount of ozone destroyed per pound of a chemical, relative to the standard CFC-11 with an ODP = 1.0. Because halons have been implicated in stratospheric ozone depletion, their production was stopped at the end of 1995 under the provisions of the Montreal Protocol plus later amendments (Environmental policy and law; Grey; International Lawyer; Zurer). In the U.S., the Clean Air Act Amendments of 1990, Presidential directives, and DoD Directive 6050.9 implemented this phaseout (United States a; United States b). These regulations and penalties have provided strong incentives for U.S. businesses to decrease CFC use. The Omnibus Budget Reconciliation Act of 1989 mandates high Federal taxes on CFCs and halons, designed to price them out of the market. The taxes also capture for the government the windfall profits that would otherwise go to producers as scarcity drives up prices.

Several replacements have been developed for Halon 1301. One is carbon dioxide, which has been used as a firefighting agent for many years. However, a high concentration of carbon dioxide is necessary to inert fuels. The effective concentration for inerting with carbon dioxide is approximately 29%, which is above the concentration lethal to humans. HFC-227ea is being used extensively to replace Halon 1301 systems in normally occupied areas and some normally unoccupied areas. However, since the effective concentration of HFC-227ea is about three to four times that of Halon 1301 the extinguishing systems have to be larger and new extinguishing systems have to be installed. HFC-125 is also being sold as an extinguishing agent (Nimitz). It has problems similar to HFC-227ea, with a greater concentration needed for effectiveness and the need to use a larger system. This is a particularly onerous penalty in aircraft and spacecraft, where weight and space are extremely important, and substitution is often impossible in existing aircraft due to space limitations.

Several research groups have conducted extensive and productive studies on the inerting concentrations and combustion chemistry of halons and candidate halon replacements. These groups have included, among others, researchers at NIST, NMERI, and the Naval Research Laboratory (Brabson, et al.; Clay, et al.; Fleming, et al.; Grosshandler, et al. a; Grosshandler, et al. b; Hamins; Heinonen; Maranghides, et al.; Moore, et al.; Paige; et al.). Intensive investigations have been conducted to find a general replacement for Halon 1301, thus far to no avail. Some very effective agents such as Fe(CO)₅ and other organometallics, PBr₃, and phosphonitriles have been discovered, but they are either unstable, highly toxic, produce highly toxic byproducts in flames, or would be expensive to manufacture.

ETEC has performed studies on a number of alternative fire suppression agents, including iodofluorocarbons (IFCs), and in particular CF₃I. Iodofluorocarbons (IFCs) have been shown to have excellent physical properties, zero ozone-depletion potential (ODP), extremely low global warming potential (GWP), good thermal stability, and relatively low toxicity. Previous work by the proposed PI determined that CF₃I could provide an effective, long-term Halon 1301 replacement. CF₃I is almost exactly as effective as Halon 1301. Subsequently, CF₃I has been approved under the U.S. EPA's Significant New Alternatives Policy (SNAP) for use as a Halon 1301 replacement in unoccupied areas. CF₃I has also recently been recommended as a Halon 1301 replacement for inerting the fuel tanks in the F-16 (Vitali).

The one major disadvantage of CF₃I is its relatively low threshold cardiac sensitization level. Many gaseous hydrocarbons and halocarbons sensitize animal hearts to adrenalin. The possibility of death from heart fibrillation after exposure to a halocarbon was first realized in the 1960s. A standard test was developed at that time to determine the relative cardiac sensitization of compounds. The test uses Beagle dogs that are injected with enough ephinephrine (adrenalin) to be barely under the amount that would cause that dogs' heart to go into fibrillation (this dosage is determined for each individual dog in the test group). After injection, the dogs are exposed to concentrations of the test compound in air. The minimum amount of the compound found to induce heart irregularities is the LOAEL, or Lowest Observable Affect Exposure Limit. The NOAEL, or No Observable Affect Exposure Limit, is the maximum concentration the dog can be exposed to with no affect. This test is quite rigorous, since the dogs are already just below the point of fibrillation due to the very high ephinephrine level. It has been estimated that the levels used in these tests may be 100 times or more higher than would be seen in a highly frightened test subject (Vinegar). This test's relevance is being questioned, but it remains the standard at this time. CF₃I's NOAEL of 0.2% is well below its effective concentration for total flooding applications, and therefore it is not approved for use in normally occupied areas.

As part of its effort to develop low atmospheric impact, high capacity, energy-efficient refrigerant blends for NASA Kennedy Space Center, ETEC investigated several gaseous combustion suppression agents. The rationale for this was to inert flammable compounds that are otherwise excellent refrigerants. Examples of such compounds are R-152a, R-161, and propane. If a gaseous combustion suppressant could inert the flammability of a good refrigerant compound at a low enough concentration that the good refrigerant properties of the flammable compound could be retained, the result would be a desirable new refrigerant blend. There is precedent for this approach in refrigerant blends such as R-500, a blend of R-152a and R-12 where R-152a's flammability is suppressed by R-12.

In the course of our studies, some interesting results were obtained, including some unexpected results involving the flammability suppression effectiveness of CF₃I and identification of a new suppression agent that appears to be considerably more effective than Halon 1301 or CF₃I. The new agent has promise of having acceptably low toxicity to be used as a total flooding fire suppression agent in normally occupied areas.

In addition, development work for the U.S. Air Force Research Laboratory on new IFC-based solvents produced data on their flammability suppression effectiveness and flammability. The results of these studies included here because they are also of potential interest for fire suppression applications.

RESULTS AND DISCUSSION
Flammability Suppression of Solvents by Selected IFCs

The definition of flammability for liquid compounds is a flash point less than or equal to 333.5 K (60.5°C or 141°F). A combustible liquid is defined as having a flash point between 333.5 K and 366 K (93°C or 200°F) (United States c). A liquid with a flash point above 366 K is often described as nonflammable or noncombustible, but we prefer to use the term fire-resistant. Any material that can oxidize can be made to combust under severe enough conditions (for example, in high pressure oxygen).

The studies done to support alternative solvent development concentrated on near-azeotropic blends of IFCs with flammable solvents. Near-azeotropic blends were identified by computer modeling to narrow the range of candidate blends followed by distillations of mixtures to identify near-azeotropic, i.e., constant-boiling, compositions. In distillation studies, nine (9) near-azeotropic blends of IFCs with flammable solvents were identified. These blends were tested for flammability using Setaflash^® open and closed cup (ASTM D 4206-89 and ASTM D 3828-93), wick (ASTM D 4207-91), aerosol spray (ASTM D 3065-72), and vapor phase (ASTM Method E-681) tests.

Three of the nine near-azeotropic blends proved to be nonflammable. It was found that, in general, 40 - 60% by volume of the IFC was needed in the blend to render it nonflammable. Some of the variation appeared to be dependent on the chemical nature of the flammable compound. For instance, hydrocarbons such as pentane and cyclohexane required 55 - 60% by volume IFC for inertion, while alcohols such as ethanol and isobutanol required 40 - 45% by volume IFC.

The Vapor-Phase Flammability of Selected IFCs

Vapor-phase flammability tests produced some interesting results. The ASTM E-681 testing reported in this section was conducted based on the older version of this test (5 L test flask). ASTM E-681 is a very severe test of flammability in air that is normally used for gases such as gaseous fuels and refrigerants. This is not a standard test for solvent flammability. In this test, the compound (or mixture of compounds) at the desired test concentration in air containing 50% relative humidity is introduced into a 5 L spherical flask maintained at 373 K, allowed to equilibrate, and sparked repeatedly with a 15 KV, 30 mA spark between two platinum electrodes. Desired concentrations are prepared by pressure measurements. The compound or mixture of compounds is flammable if a resulting flame exceeds the extent of a 45° cone marked on the flask. It is not one of the standard tests used for solvents, and is not mandated for solvent flammability testing. All of the near-azeotropic blends were found to be flammable by this test, but this test also gives flammability limits in air for the normally nonflammable solvents 1,1,1-trichloroethane (TCA) and trichloroethylene (TCE). When we tested the pure IFCs, they also gave flammability limits by this test method. The results for the IFCs are shown in Table 1, along with values for several other compounds of interest for comparison purposes. CF₃I does not combust by this test, and it is interesting that the higher IFCs we tested combust at all, since the similar fully halogenated compounds CFC-113 and perchloroethylene do not combust in this test. Visual observations during the testing indicate that elemental iodine is released in the higher IFC combustion process. It must be noted, however, that 1-C4F9I, perfluoro-n-butyl iodide, was extremely resistant to oxidation by oxygen in other test methods. Perfluoro-n-butyl iodide tested only slightly less stable than CFC-113 in the liquid oxygen compatibility test. CFC-113 passes this test at 72 ft-lbs striking force. Only two out of seventeen samples of perfluoro-n-butyl iodide reacted at 72 ft-lbs, and none out of 20 samples at 65 ft-lbs. Perfluoro-n-butyl iodide's autoignition temperature in 100% oxygen at 13.8 Mpa (2000 psia) was measured as 444 - 448 K (171 - 175°C).

Flammability Suppression Effectiveness of CF₃I on Selected Fuels

Results of some of the studies we had conducted indicated that there might be an effect from fuel type on the combustion suppression effectiveness of IFCs. Of particular interest to us in our refrigerant development studies was CF₃I.

In order to determine some of the effects of the fuel type on the inerting concentration of CF₃I, a set of simple fuels and a gas phase test apparatus was used. A gas flammability apparatus based on ASTM E-681 was used to obtain homogeneous inertion concentrations not dependent on flow rates, position of suppressant injection, or mixing efficiency. The test apparatus used in this testing was the updated apparatus specified in the recently revised E-681 test procedure. The revised version of the test uses a 12 L spherical glass flask maintained at 600°C.

Fuels consisting of a single chemical with small molecules were used to keep complex combustion intermediates to a minimum and to determine whether any trends with chemical structure were apparent. The fuels were propane, cyclopropane, isobutane, dimethyl ether, and fluoroethane. The flammability results, over a range of concentrations, were used to prepare flammability diagrams and determine the ratios of CF₃I to fuel vapor required for inertion.

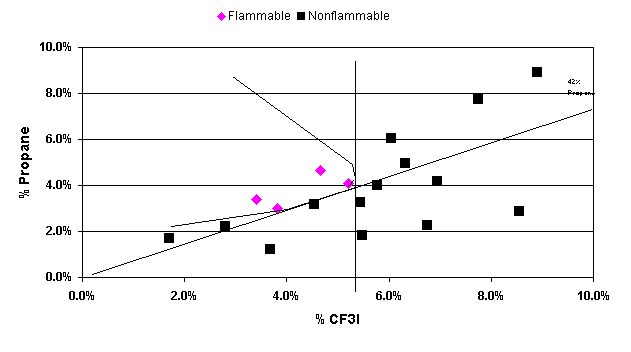

Figure 1 shows an example of an inertion diagram for one of the fuels tested with CF₃I. The data were examined in two ways. In the standard approach, the concentration of CF₃I needed to inert any concentration of air in the fuel was determined by drawing a tangent line to the flammable region perpendicular to the CF₃I axis. We also determined the ratios of CF₃I to fuel needed to give nonflammable compositions in air. To achieve this a tangent line was drawn from the origin through the lower borderline of the flammable region. The slope of this line gave the minimum ratio of CF₃I to the flammable component necessary to inert the blend at any concentration in air. We refer to this line as the dilution line because it represents all possible dilutions of the borderline nonflammable composition in air. Both of these tangent lines are shown in Figure 1.

Table 2 shows the percentages of CF<sub>3_{I needed to inert the five fuels tested and the ratios of CF3I to fuel needed for inertion. All percentages are given by moles. The absolute percents of CF3I needed to inert the fuel have a relatively high uncertainty (±0.5%) because we were primarily interested in the ratios of extinguishant to fuel.}

The results obtained are consistent with known previous data for combustion suppression effectiveness of CF₃I. Previous work has shown that CF₃I and Halon 1301 have very similar inerting concentrations for propane in the explosion sphere, 6-7 mole percent absolute or 54-58 mole percent in fuel blends (Moore, et al.; Heinonen). Although the apparatus used in the previous studies was somewhat different from ours, the results for propane are in good agreement. The results for isobutane are in excellent agreement with the results of an EPA study which found the flammability borderline to be at a ratio of 62 mole percent CF₃I to 38 mole percent isobutane (Baskin, et al.).

The unanticipated finding was that CF₃I was extremely ineffective at inerting dimethyl ether and cyclopropane, requiring over 40 mole percent absolute or over 95 mole percent in the fuel blend. To attempt to understand the somewhat surprising ineffectiveness of CF₃I in inerting dimethyl ether and cyclopropane, we considered the fuels' chemical structures and heats of combustion. Table 3 lists heats of combustion for the fuels. No differences are apparent that explain the results obtained. Chemically, the differences between these fuels and the hydrocarbons or hydrofluorocarbons are that one of the fuels contains an oxygen atom and the other has a highly strained ring, both of which may significantly affect chemical reactivity. Clearly, these fuels are either increasing the rate of flame radical propagation or heat generated, or decreasing inhibitory species. It is also possible that exothermic chemical reactions are occurring between CF₃I and dimethyl ether or cyclopropane. However, our data set is very limited and studies with additional fuels would be needed to determine what is occurring. In any event, the results obtained here should not affect the large majority of proposed uses of CF₃I as a total flooding fire suppressant, since fuels of concern rarely contain ethers or cyclopropanes.

Flammability Suppression Effectiveness of ETEC Agent A

In the course of our investigations into combustion suppressant agents for flammable refrigerants, several other known combustion suppressant agents and several experimental combustion suppressant agents were tested. One agent proved to be particularly effective in inerting gaseous fuels. The new agent, given the temporary name ETEC Agent A, is in general a better combustion suppressant than CF₃I, HFC-125, or HFC-227ea, and, from the toxicity data that is known, has promise to be acceptable for use in normally occupied areas. ETEC Agent A is proprietary at this time, but the results of combustion suppression testing with it can be shown.

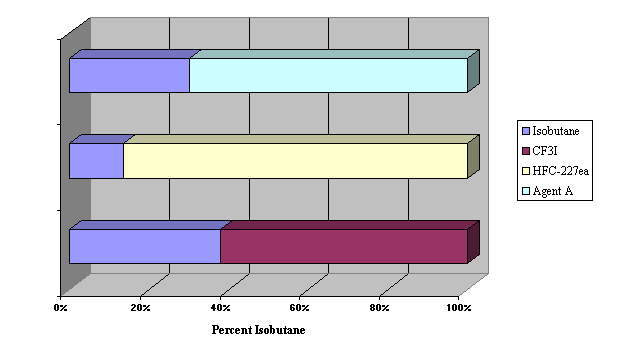

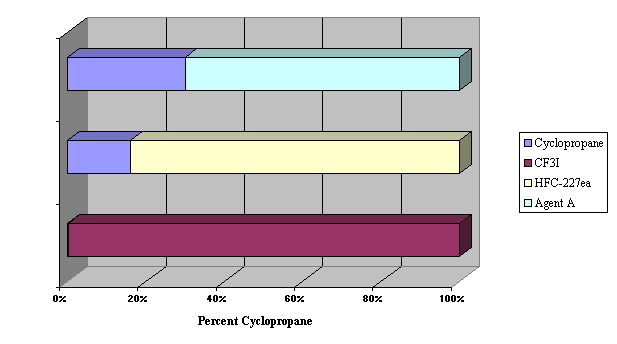

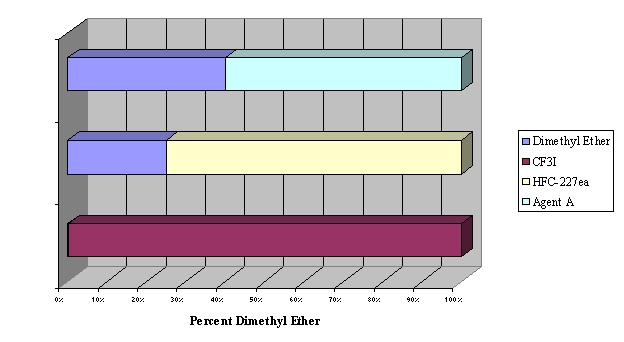

Figures 2 through 4 show some combustion suppression results for ETEC Agent A compared to CF₃I and HFC-227ea. As shown in the previous section, CF₃I was found to be very ineffective in suppressing the combustion of cyclopropane and dimethyl ether. HFC-227ea is somewhat effective on these fuels, but still requires a large amount to inert. ETEC Agent A is significantly better than both CF₃I and HFC-227ea on these fuels that are very difficult to inert. CF₃I is very effective in inerting isobutane and other hydrocarbons. HFC-227ea is considerably less effective than CFI with respect to hydrocarbons, the source of HFC-227ea's needed extra volume and weight compared to Halon 1301. ETEC Agent A is almost as effective as CF₃I and Halon 1301 on isobutane, a typical hydrocarbon fuel.

Table 4 gives absolute mole percentages needed to inert the three fuels shown in Figures 2 through 4.

CONCLUSIONS

A new combustion suppression agent, ETEC Agent A, has been identified that has promise of being an effect Halon 1301 replacement in total flooding fire suppression applications for normally occupied areas. The new agent appears to be particularly effective on fuels whose flammability is difficult to suppress. More extensive flammability suppression studies need to be done, and the toxicity of the new agent needs to be established in detail. A retrofitable Halon 1301 replacement that could be used in the same size and weight systems would save millions of dollars in fire suppression system replacement costs, and would be particularly valuable on aircraft.

ACKNOWLEDGEMENTS

We are grateful for support of the work described here by NASA Kennedy Space Center and the U.S. Air Force Research Laboratory. We would like to thank Dr. Jacqueline Quinn of NASA Kennedy Space Center and Dr. Edward Snyder of the U.S. Air Force Research Laboratory for their valuable technical support during the efforts.

REFERENCES

1. Baskin, E., Smith, N. D., and Perry, R., "Flame Suppression and Lubricant Interaction of Hydrocarbon Mixtures for Household Refrigerators/Freezers," Proceedings of the International Conference on Ozone Protection Technologies, Washington, DC,Oct. 24-26, 1994, pp. 32-37.
2. Brabson, G. D., Walters, E. A., and Tapscott, R. E., "Insights into Extinguishment Mechanisms from Heat Extraction Experiments," abstract only in Proceedings of the Halon Options Technical Working Conference, Albuquerque, NM, May 6-8, 1997.
3. Clay, J. T., Walters, E. A., Willcox, M. V., Arneberg, D. L., Nimitz, J. S., and Grover, J. R., "Fundamental Studies on the Chemical Mechanism of Flame Extinguishment by Halons," Proceedings of the Halon Alternatives Technical Working Conference, Albuquerque, NM, April 30-May 1, 1991.
4. Environmental policy and law, "Montreal Protocol," Vol. 29, February 1, 1999, pg. 9.
5. Fleming, J.W., L'Esperance, D., Williams, B.A., and Sheinson, R. S., "Halon Replacement Research at the Naval Research Laboratory: Laboratory Studies," Proceedings of the International Conference on Ozone Protection Technologies, Washington, DC, October 21-23, 1996, pp. 659-668.
6. Grey, K. R., "Decision in the Desert: Report on the 10^th Meeting of the Parties to the Montreal Protocol in Cairo," Review of European community & international env., Vol. 8, 1999, pg. 160.
7. Grosshandler a: Grosshandler, W. L., and Gmurczyk, G. W., "Interaction of HFC-125, FC-218, and CF₃I with High Speed Combustion Waves," Proceedings of the 1995 International CFC and Halon Alternatives Conference, Washington, DC, Oct. 21-23, 1995, pp. 635-643.
8. Grosshandler, W. L., Presser, C., and Gmurczyk, G. W., "Effectiveness of Halon Alternatives in Suppressing Dynamic Combustion Processes," Proceedings of the American Chemical Society 208^th National Meeting, ACS Symposium Series 611, Chapter 18, Aug 21-25, 1996, Washington, DC, Miziolek, A. W. and Tsang, W., Eds, pp. 204-224.
9. Hamins, A., "Flame Suppression by Halon Alternatives," U.S./Japan Government Cooperative Program on Natural Resources UUJNR). Fire Research and Safety, 13^th Joint Panel Meeting, Vol. 2, Mar 13-20, 1996, Gaithersburg, MD, Beall, K.A., ed., pp. 119-127, 1997.
10. Heinonen, E. W., "The Effect of Ignition Source and Strength on Sphere Inertion Results", Halon Alternatives Technical Working Conference 1993, Albuquerque, NM, pages 565-576.
11. International Lawyer, The, "Montreal Protocol," Vol. 26, no. 1, pp. 148-179, 1992.
12. Maranghides, A., Sheinson, R.S., and Wentworth, B., "Flammable Liquid Storerooms: Halon 1301 Replacement Program," in Beall, K.A., ed., National Institute of Standards and Technology. Annual Conference on Fire Research: Book of Abstracts, Nov 2-5, 1998, Baithersburg, MD, pp. 131-132.
13. Moore, T. A., Skaggs, S. R., Corbitt, M. R., and Tapscott, R. E., Dierdorf, D. S., and Kibert, C. J., "The Development of CF₃I As A Halon Replacement" report NMERI 1994/40, prepared under contract S-5007.7 from Applied Research Associates, October 1994.
14. Nimitz: Jon Nimitz and colleagues discovered and patented use of HFC-125 for firefighting. The patent is licensed to DuPont.
15. Paige, H.L., Berry, R.J., Schwartz, M., Marshall, P., Burgess, D. R. F., and Nyden, M.N.F., "Ab Initio Calculations and Kinetic Modeling of Halon And Halon Replacements, Proceedings of the Halon Options Technical Working Conference, May 7-9, 1996, Albuquerque, NM, pp. 1-12.
16. Vinegar, A. and Jepson, G. W., "Epinephrine Challenge for Cardiac Sensitization Testing vs. Endogenous Epinephrine: A Perspective," Proceedings of the Halon Options Technical Working Conference, Albuquerque, New Mexico, April, 1999, available from New Mexico Engineering Research Institute, The University of New Mexico, Albuquerque, New Mexico.
17. Vitali, J., Tyndall AFB, FL, personal communication to Dr. Jon Nimitz, ETEC, Albuquerque, NM, April 1999.
18. United States a: "Omnibus Budget Reconciliation Act of 1989," Public Law 101-189 (H.R. 2461). November 29, 1989 (103 Stat. pp. 1425-1426).
19. United States b: "Clean Air Act Amendments of 1990: Conference Report to Accompany S. 1630," report 101-952, U.S. Government Printing Office, Washington, DC 20402.
20. United States c: Code of Federal Regulations 173.120, "Hazardous Materials Guide," May 1995.
21. Zurer, P., "Ozone Treaty Tightened, CFC Substitutes Controlled," Chemical & Engineering News, December 7, 1992, p. 5. (Montreal Protocol 1992 Copenhagen amendments)
