PLASTIC MEDIA BLASTING (PMB) PAINT STRIPPING

Revision Date: 8/03
Process Code: Navy/Marines: IND-001-99; Air Force: ST01; Army: DPT
Usage List: Navy: High; Marines: High; Army: High; Air Force: High
Alternative For: Chemical Paint Stripping/Sand Blasting
Compliance Impact: Medium
Applicable EPCRA Targeted Constituents and CAS Numbers: Toluene (CAS: 108-88-3), Xylene (CAS: 1330-10-7), Methyl ethyl ketone (CAS: 78-93-3), Acetone (CAS: 67-64-1), n-Butyl alcohol (CAS: 71-36-3), Lead (CAS: 7439-92-1), Chromium (CAS: 7440-47-3), Zinc Compounds (No CAS), Phenol (CAS: 108-95-2), Chloroacetic acid (CAS: 79-11-8), and Dichloromethane (CAS: 75-09-2)

Overview: Plastic Media Blasting (PMB) is a dry abrasive blasting process, designed to replace chemical paint stripping operations and conventional sand blasting. This process uses soft, angular plastic particles as the blasting medium, and has proven more efficient than chemical paint removal.

PMB is performed in a ventilated enclosure such as a small cabinet (glove box), a walk-in booth, a large room, or airplane hanger. The PMB process blasts the plastic media at a much lower pressure (less than 40 psi) than conventional blasting. PMB is well suited for stripping paints, since the low pressure and relatively soft plastic medium have virtually no effect on the surfaces beneath the paint. PMB is currently authorized by NAVAIR for multiple uses down to 0.016-inch aluminum skins.

After blasting, the media is passed through a reclamation system that consists of a cyclone centrifuge, a dual adjustable air wash, multiple vibrating classifier screen decks, a dense particle separator, and a magnetic separator. The denser particles, such as paint chips, sand, grit, and aged sealant particles, are separated from the reusable blast media, and the reusable media is returned to the blast pot. Typically, media can be recycled ten to twelve times before it becomes too small to remove paint effectively. Waste material consists of blasting media and paint chips. The waste material may be classified as a RCRA hazardous waste because of the presence of metals. An alternative solution to handling a potential hazardous waste is to contact one of the many vendors that will "lease" the blast media to the facility and then use the waste media in the manufacturing process for consumer products, such as bathroom sinks and plastic yard pots and benches.

Plastic media are manufactured in 7 types and a variety of sizes and hardnesses. A military specification (MIL-P-85891) has been developed for plastic media. The specification provides general information on the types and characteristics of plastic media. The plastic blasting media types are:

  • Type I Polyester (Thermoset)
  • Type II Urea formaldehyde (Thermoset)
  • Type III Melamine formaldehyde (Thermoset)
  • Type IV Phenol formaldehyde (Thermoset)
  • Type V Acrylic (Thermoplastic)
  • Type VI Poly (allyl diglycol carbonate) (Thermoset)
  • Type VII Starch-g-acrylic

PMB facilities typically use a single type of plastic media which they use for all of their PMB work. The majority of DOD PMB facilities use either Type II or Type V media. Type V media is not as hard as Type II media and is gentler on substrates. Type V media is more commonly used on aircraft. Type II is better for steel-only surfaces.

The pollution prevention benefits of this technology as compared to sandblasting concern the reuse of the blasting media, which greatly reduces the volume of spent media generated. When compared to chemical paint stripping, this technology eliminates the generation of waste solvent.

PMB is being used at Puget Sound, Charleston, and Portsmouth Naval shipyards; Naval Aviation Depots (NADEPs) North Island and Cherry Point; and Naval Surface Warfare Center (NSWC) Indian Head, as well as other Navy activities and throughout the Army and Air Force. Plastic media glove boxes and enclosed blasting booths have been installed at depot and intermediate level aircraft maintenance activities to remove paint from support equipment and components. A blast media lease and recycle program is currently in place at many facilities, including NADEP Cherry Point. A more detailed list of organizations within the DOD depot maintenance community that have implemented PMB operations is provided in Appendix III of Joint Paint Removal Study; Final Report Plastic Media Blast, Joint Depot Maintenance Analysis Group, Technology Assessment Division, June 1994.


Compliance Benefit: Use of plastic media blasting paint stripping will help a facility decrease the amount of solvents used and stored on site and therefore, decreases the possibility that the facility will meet reporting thresholds for solvents under SARA Title III (40 CFR 300, 355, 370, and 372) as well as Executive Order (EO) 13148, Greening the Government Through Leadership in Environmental Management. In addition, plastic media blasting generates less hazardous waste than traditional sand blasting operations. The decrease in hazardous waste helps facilities meet the requirements of waste reduction under RCRA, 40 CFR 262; the Pollution Prevention Act (42 USC 13101-13109); and EO 13148; and may also help facilities reduce their generator status and their regulatory burden (e.g., recordkeeping, reporting, inspections, transportation, accumulation time, emergency prevention and preparedness, emergency response) under RCRA, 40 CFR 262. Moreover, plastic media blasting uses less water and electricity than chemical depainting operations in accordance with the requirements of EO 13123, Greening the Government Through Efficient Energy Management.

The compliance benefits listed here are only meant to be used as general guidelines and are not meant to be strictly interpreted. Actual compliance benefits will vary depending on the factors involved, e.g., the amount of workload involved.


Materials Compatibility: Storage and handling of plastic media and blast waste associated with this process pose no compatibility problems. Prior to using plastic media for depainting operations, personnel should check applicable military specifications [such as (MIL-P-85891)] and operations manuals for the PMB systems. Plastic media cannot be used with a system designed for other types of media, without some important modifications. Some military specifications do not allow PMB for depainting certain types of materials (i.e. fiberglass, certain composites, honeycomb sandwich structures, and some applications with thin-skinned aircraft components). In certain cases, PMB can inhibit crack detection by fluorescent penetrant inspection on some of the softer alloys used for aircraft components (e.g., magnesium).


Safety and Health: As with any blasting operations, airborne dust is a major safety and health concern. Proper precautions should be taken to ensure that personnel do not inhale dust/particulate matter. Additional protective measures should be taken when stripping lead chromate- or zinc chromate-based paints, as these compounds may be hazardous. Inhalation of lead and zinc compounds can irritate the respiratory tract, and some compounds are known to be carcinogenic. Prolonged exposure can affect respiration and the central nervous system. Operators must wear continuous flow airline respirators in accordance with OSHA requirements as specified in 29 CFR 1910.94 when blasting operations are in progress.

Consult your local industrial health specialist, your local health and safety personnel, and the appropriate MSDS prior to implementing this technology.


Benefits:
  • Media can be recycled (10-12 recycling events).
  • Wastewater disposal costs (typical in chemical paint stripping operations) are virtually eliminated with PMB.
  • Eliminates the production of waste solvents when compared to chemical paint stripping.


Disadvantages:
  • Substantial capital equipment investment is required.
  • Quality of stripping is dependent on skill and experience level of the operator.
  • Military specifications do not allow PMB for depainting certain types of materials.
  • May not remove corrosion products.
  • While this waste may be exempt from Resource Conservation and Recovery Act (RCRA) regulation as a hazardous waste, it may be classified as a hazardous material for transportation purposes.


Economic Analysis: PMB systems can range in cost from $7,000 for a small portable unit to $1,400,000 for a major facility for aircraft stripping. The following information on investment costs and costs/payback for PMB systems at Hill AFB, Utah, was provided in Joint Paint Removal Study; Final Report; Plastic Media Blast, Joint Depot Maintenance Analysis Group, Technology Assessment Division, June 1994. According to the Air Force Corrosion Program Office, the capital cost for PMB for large aircraft (cargo) increases by orders of magnitude, for example, $12,000,000 for C-5. In such cases, however, the cost savings achieved by utilizing PMB versus chemical stripping do not increase proportionally, so payback will not occur in two years as indicated in the following economic analysis.

In 1987, Hill AFB gathered data during the stripping of F-4 aircraft using chemical stripping and PMB.

Assumptions:

  • Labor rate: $45/hr.
  • Work load = 75 aircraft/yr.
  • Labor per airplane: 183 hrs for blasting, 364 hrs for chemical stripping.
  • Chemical procurement cost: $11.40/gallon.
  • Chemical use per airplane: 468 gallons.
  • Plastic media procurement cost: $1.76/lb.
  • Plastic media used per airplane: 1,500 lbs.
  • Water treatment/disposal: $8.24/1000 gallons.
  • Water usage per airplane: 200,000 gallons.
  • Electricity usage costs per airplane: PMB = $173; chemical stripping = $333.
  • Paint and solvent waste disposal: Paint and solvent waste disposal: 0.51 ton per airplane at $2000/ton
  • Spent media and blast waste disposal: 0.85 ton per airplane at $260/ton.
  • Water purchase costs: $0.43/1000 gallons.
  • Maintenance costs per airplane: PMB = $1,333; chemical stripping = $667.
  • Cost per airplane to strip parts which can’t be done using PMB: $667.

Annual Operating Cost Comparison for PMB and Chemical Stripping



PMB

Chemical Stripping
Operational Costs:
Labor: $617,600 $1,228,500
Chemical: $0 $400,100
Plastic Media: $198,000 $0
Water Treatment/ Disposal: $0 $123,600
Electricity: $13,000 $25,000
Hazardous Waste Disposal: $16,600 $76,500
Water: $0 $6,500
Maintenance Cost: $100,000 $50,000
Cost of parts not done by PMB: $50,000 $0
Total Operational Costs: $995,200 $1,910,200
Total Recovered Income: $0 $0
Net Annual Cost/Benefit: -$995,200 -$1,910,200

Economic Analysis Summary:

  • Annual Savings for PMB: $915,000
  • Capital Cost for Diversion Equipment/Process: $1,400,000
  • Payback Period for Investment in Equipment/Process: < 1.5 years

Click Here to view an Active Spreadsheet for this Economic Analysis and Enter Your Own Values. To return from the Active Spreadsheet, click the Back arrow on the Tool Bar.


NSN/MSDS:
Product NSN Unit Size Cost MSDS*
Plasti-Grit Type II Hard (MIL-P-85891) 5350-01-326-9942 50lb bag   Click me
Plasti-Grit Type V (MIL-P-85891) 5350-01-327-8460 50lb bag   Click me

*There are multiple MSDSs for most NSNs. The MSDS (if shown above) is only meant to serve as an example. To return from the MSDS, click on the Back arrow on the Tool Bar.


Approving Authority: Appropriate authority for making process changes should always be sought and obtained prior to procuring or implementing any of the technologies identified herein.

PMB is not authorized for use on aluminum and magnesium components that require a fluorescent penetrant inspection. NAVAIR has authorized PMB use on metal substrates under specific process control parameters at intermediate and depot level activities. See NAVAIR 01-1A-509 for specific limitations. NAVAIR has also authorized PMB for depainting certain carbon/epoxy composite structures and some specific metal/honeycomb structures. NAVAIR has not authorized PMB for depainting fiberglass and some specialized composites, including carbon-bismaleimide layups.

For Air Force applications, plastic media blasting must not be used on any aircraft or weapon systems without the knowledge and approval of the appropriate system manager, office(s) having engineering authority on the specific airframe(s) and the Air Force Corrosion Program Office. This process is contained in T.O.1-1-8, but the use of it requires approval by the engineering authority of the specific Weapon System Manager or Equipment Item manager with in the Air Force.

PMB equipment authorizations are listed in the Air Force Table of Allowance (TA) 480. The following PMB recycling statements of work (SOW) are available through PRO-ACT: (a) "Statement of Work for Service Contract to Lease Plastic Media," prepared by Ogden Air Logistics Center and (b) Composite Leasing Corporation Letter, 11 April 1996, which provides a service contract outline.


Points of Contact: For more information

Vendors:

This is not meant to be a complete list, as there may be other manufacturers of this type of equipment.

Pauli System
1820 Walters Court
Fairfield, CA 94533
Phone: (707) 429-2434
FAX: (707) 429-2424
URL: http://www.paulisystems.com

Composite Leasing Corporation, Inc.
P.O. Box 102
Minocqua, WI 54548
Phone: (800) 677-4568 or (715) 356-7130
FAX: (715) 356-3952
Contact: Mr. Brian Lund
Service: Leasing Services

Composition Materials Company, Inc.
125 Old Gate Avenue
Milford, CT 06460
Phone: (800) 262-7763 or (203) 874-6500
FAX: (203) 874-6505
Service: Leasing Services

L.S. Solutions, Incorporated
P.O. Box 309
Deer Park, TX 77536
Phone: (281) 478-6522
FAX: (281) 478-6531
Service: Leasing Services


Related Links: Do You Remove Paint Using Chemical Paint Stripping? - Navy Environmental Quality Initiative (EQI)
Plastic Media Blast Booth - P2 Equipment Program
Glovebox Abrasive Blast Unit - P2 Equipment Program


Sources: Joint Paint Removal Study; Final Report; Plastic Media Blast, Joint Depot Maintenance Analysis Group, Technology Assessment Division, Dayton, Ohio; June 1994; (513) 296-8296.
N.E. Wasson, Jr., P.E., "Dry Stripping the C-5 and B-52 in the World’s Largest Dry Stripping Installation", Proceedings of the Second Annual AF Worldwide Pollution Prevention Conference, June 2, 1993.
Butch Green, LMTCE Code 343, Naval Aviation Depot, Naval Air Station Jacksonville, June 1996.
Mark Meno, NADEP Cherry Point, July 1996 and November 1999.
Brian Lund, Solidstrip, Inc., June 1996.


Supplemental: Picture of Plastic Media Blast Booth
Picture of Plastic Media Blast Booth

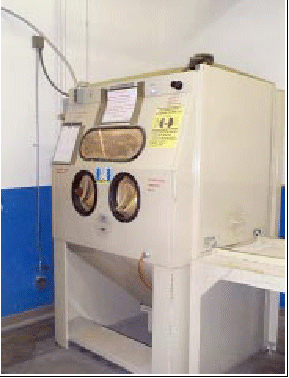

Picture of Glove Box Plastic Media Blaster
Picture of Glove Box Plastic Media Blaster
