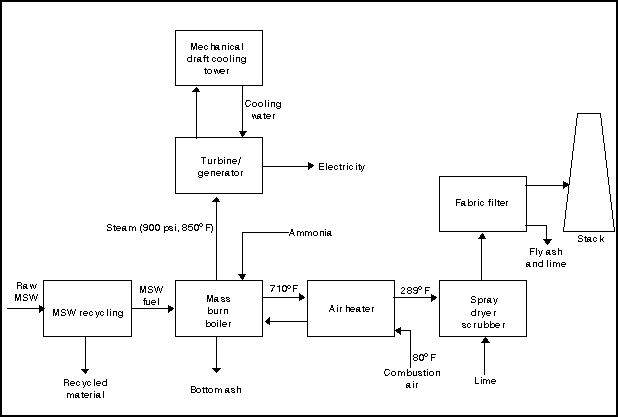

Figure 10. Schematic of a Typical MSW-Fired Mass Burn Boiler Power Plant

Note: psi is pounds per square inch.
Source: Energy Information Administration, Office of Coal, Nuclear, Electric and Alternate Fuels.
